Pulse Modulation & its types

Pulse Modulation

-      consists essentially of sampling analog information signals and then converting those samples into discrete pulses and transporting the pulses from a source to a destination over a physical transmission medium

The four predominant methods of pulse modulation:

-      pulse width modulation

-      pulse position modulation

-      pulse amplitude modulation

-      pulse code modulation

Forms of Pulse modulation

Pulse Width Modulation (PWM)

-      is sometimes called pulse duration modulation (PDM) or pulse length modulation (PLM)

-      the width of a constant amplitude pulse is varied proportional to the amplitude of the analog signal at the time the signal is sampled

-      used in special-purpose communications system mainly for the military but are seldom used for commercial digital transmission



Pulse Position Modulation (PPM)

-      the position of a constant-width pulse within a prescribed time slot is varied according to the amplitude of the sample of the analog signal

-      the higher the amplitude of the sample, the farther to the right the pulse is positioned within the prescribed time slot

-      the highest amplitude sample produces a pulse to the far right, and the lowest amplitude sample produces a pulse to the far left

-      also used in special-purpose communications system mainly for the military but are seldom used for commercial digital transmission

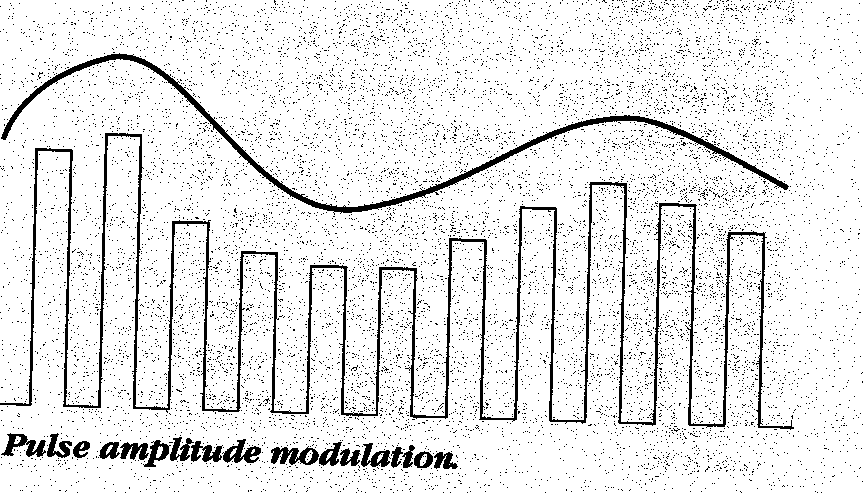

Pulse Amplitude Modulation (PAM)

-      the amplitude of a constant width, constant-position pulse is varied according to the amplitude of the sample of the analog signal

-      PAM waveforms resemble the original analog signal more than the waveforms for PWM or PPM

-      this is used as an intermediate form of modulation with PSK, QAM, and PCM, although it is seldom used by itself

Pulse Code Modulation (PCM)

-      the analog signal is sampled and then converted to a serial n-bit binary code for transmission

-      each code has the same number of bits and requires the same length of time for transmission




Read More

Disadvantages of Digital Transmission

Disadvantages of Digital Transmission

-      the transmission of digitally encoded analog signals requires significantly more bandwidth than simply transmitting the original analog signal

-      needs additional encoding and decoding circuitry because analog signals must be converted to digital pulse prior to transmission and converted back to their original analog form at the receiver

-      digital transmission requires precise time synchronization between the clocks in the transmitters and receivers

-      incompatible with older analog transmission systems

Related:

Digital Transmission

Advantages of Digital Transmission

Read More

Advantages of Digital Transmission

Advantages of Digital Transmission

-      noise immunity

o    pulses are evaluated during a precise time interval and a simple determination is made whether the pulse is above or below a prescribed reference level

-      better suited than analog signals for processing and combining using a technique called multiplexing

-      more resistant than analog systems to additive noise because they use signal regeneration rather than signal amplification

-      simpler to measure and evaluate

Related:

Digital Transmission

Disadvantages of Digital Transmission

Read More

Digital Transmission

Digital Transmission

–      is the transmittal of digital signals between two or more points in a communications system

–      The signals can be binary or any other form of discrete-level digital pulses.

–      The original source information may be in digital form, or it could be analog signals that have been converted to digital pulses prior to transmission and converted back to analog signals in the receiver.

–      with digital transmission systems, a physical facility (pair of wires, coaxial cable, or an optical fiber cable) is required to interconnect the various points within the system

Related:

Advantages of Digital Transmission

Disadvantages of Digital Transmission

Read More
